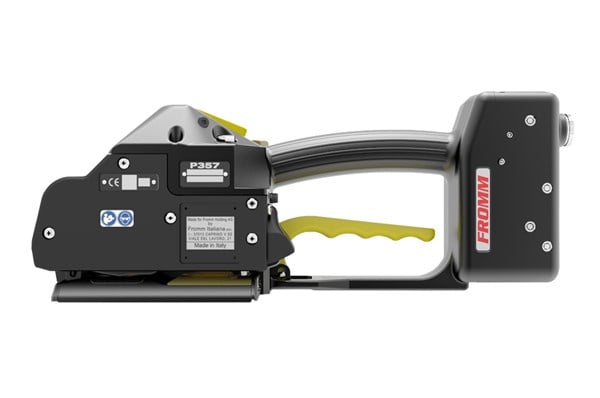

The P357 pneumatic plastic tool is ideal for packages with a rough and hard surface in a wide variety of vertical and horizontal strapping positions. The P357 is suitable for almost all applications in various industries.
Request for Information
P357 Pneumatically powered, reliable and maintenance-friendly 2-in-1, seal less tool. The perfect solution for production lines or in case electrical powered tools must not or cannot be used. Easy setting and locking, for correct and consistent secured packages and selecting manual or semi-automatic mode.
Features
Benefits
Easy strap threading
Adjustable sealing time, strap tension, and tensioning speed
Adjustable strap thickness
Pneumatically powered, very reliable, and maintenance friendly
The compressed air can be connected to the tool either on top of the main housing or at the rear end of the main handle
Characteristics
Strapping Qualities | Polyester (PET) and Polypropylene (PP), plain and embossed |
---|---|
Strapping Dimensions | width 12.7 – 16.0 mm / thickness 0.40 – 1.05 mm / .016 – .041" |
Weight incl. 4.0 Ah battery | 5.7 kg / 12.6 lbs |
Tool size with 4.0 Ah battery | L350 x W133 x H135 mm / 13.78" x 5.2" x 5.3" |
Type of seal | Sealless, Friction weld sealing |
Average seal strength | approx. 75% (dependent on the strap quality) |
Tension force | 600 – 1300 N, 135 – 292 lbs / 1200 - 2500 N, 270 - 562 lbs (adjustable) |
Tension speed | approx. 165 mm/s / 104 mm/s - See chart of types |
Max. air pressure | 5.5 - 6.0 bar / 80 - 87 psi |
Air consumption | 60 NI/min - 2.1 cu.ft/min Max. pressure drop of 0.5 bar / 7.25 psi |
Suspension bracket | supplied with the tool |
