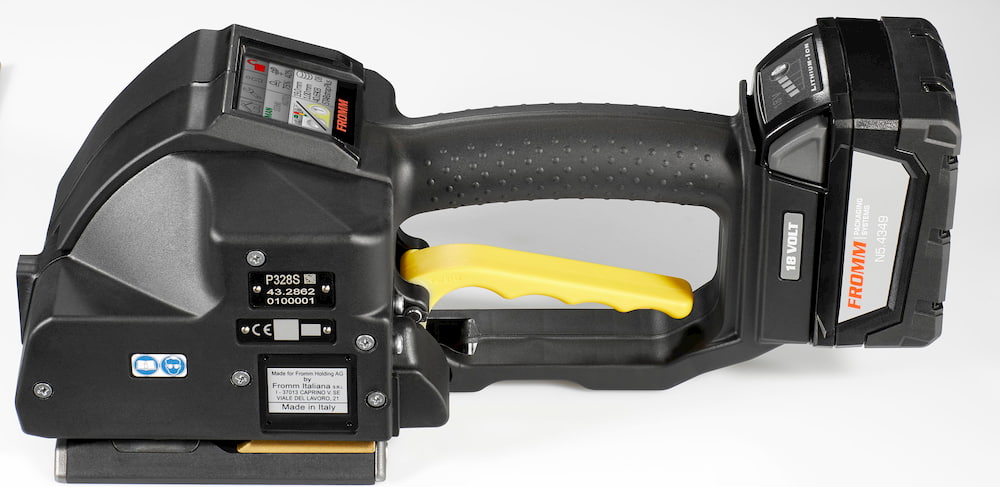

    FROMM P328 S  Series, the digitalized, battery powered tool for Plastic Strapping,  is equipped with an HD colour touch screen, enabling the operator to select manual, semi-automatic or full automatic mode and much more.

    • Strap qualities :Polyester (PET)/Polypropylene (PP)
    • Strap dimensions: 12.0 - 16.0 x 0.40 - 1.05 / 7/16 - 5/8 x .016 - .041"
    • Strap tension :250 - 2600 N (adjustable)
    • Sealing type : Sealless
    • Power supply :Battery 18VDC / 4.0 Ah Li-Ion
    • Weight  :4.3 kg / 9.6 lbs
    Download Brochure

    P328S , The S-series Strapping Tools are equipped with a heavy duty, easy-to-use Colour Touchscreen, enabling simple
    programming and operation. The screen is ergonomically located in the field of vision of the operator, with clear
    readable and user friendly icons.

    Features

    • Multifunctional 3-in 1 Strapping Tool

    • Optimal Seal efficiency by means of 2 Strap guides
    • Consistent results with PIN code locking capabability
    • Pre-set  Strap types with 10 free programmable profiles.
    • No mechanical buttons, no mechanical wear
    • Touchscreen insight of operator, 1 thumb can do settings and strap cycles.
    • Highly resistant to scratches and external impact.
    • Keeps performing, even under the most severe, abrasive and greasy circumstances. It surpassed durability tests of over 300.000 cycles, under various arduous conditions and temperatures. Aspects that certainly contribute
      to a long-term and problem-free operation.
    Touchscreens S series



    Characteristics



    Strapping Qualities Polyester (PET) and Polypropylene (PP) plain and embossed
    Strapping Dimensions width 12.0 – 16.0 mm / ½ - ⅝” thickness 0.40 – 1.05 mm / .016 – .041”
    Weight incl. 4.0 Ah battery 4.3 kg / 9.6 lbs
    Tool size with 4.0 Ah battery L351 x W134 x H143 mm / 13.8 x 5.3 x 5.6”
    Type of seal Friction welding
    Average seal strength approx. 75% (dependent on the strap quality)
    Tension force 250 – 2600 N / 56 – 585 lbs (adjustable)
    Tension speed 49 – 174 mm/s / 1.9 – 6.8 inch/s
    Power supply Battery Li-Ion 18 VDC / 4.0 Ah or 9.0 Ah
    Suspension brackets optional
