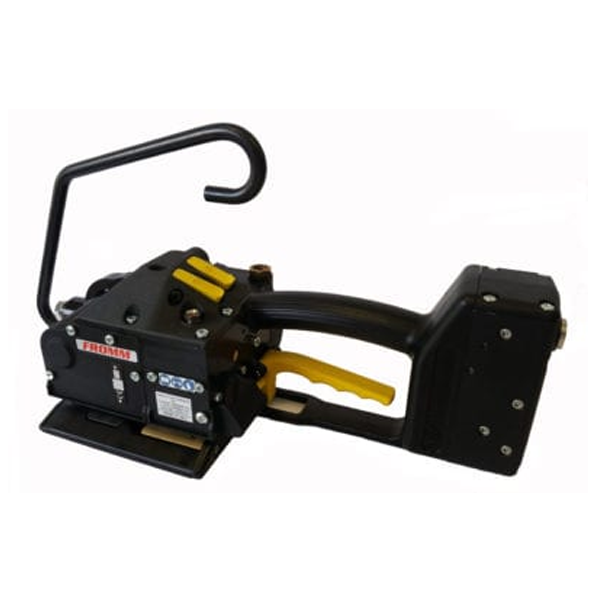

P359

    For Xtra-HD applications, with consistent seal efficiency

    P359-a

    The FROMM P359, isUnique high tension tool -massive savings opportunity.The pneumatic sealless strapping tool is ideal for heavy duty applications. The FROMM P359 delivers an impressive high tension of up to 7000N (1575 lbs). This new P359 will change the way of packaging in the ferrous and non-ferrous industries, creating massive savings.

    • Strap qualities :Polyester (PET) plain and embossed
    • Strap dimensions : 19 - 32.0 x 0.60 - 1.53 | 3/4 - 1 1/4" x .023 - .060"
    • Strap Tension : 2000 - 3500 N, 450 - 785 lbs / 4000 - 7000 N, 900 - 157 lbs
    • Sealing Type:  Friction weld sealing
    • Max air pressure:6.0 bar / 87 psi
    • Weight  : 8.9 kg / 19.6 lbs



    Download Brochure

    Pneumatically powered, reliable and maintenance-friendly 2-in-1, seal less tool. The perfect solution for production lines or in case electrical powered tools must not or cannot be used. Easy setting and locking, for correct and consistent secured packages and selecting manual or semi-automatic mode.

    Features

    • Polypropylene (PP) and polyester (PET) strapping
    • Strapping dimensions: widths = 16.0–19.0 mm/5/8–3/4” thicknesses = 0.65–1.27 mm/.026–.053”
    •  Excellent tool for applications where electrical strapping tools cannot or may not be used.
    • Tension force and welding/cooling time are easy and quick to set and lock by the operator.
    • Its robust and durable design, with a minimum of moving parts
    •  Consistent working tool, delivering the same quality of strapping, again and again.

    Benefits

    • The perfect solution where electrical powered tools, for safety or technical reasons, must not or cannot be used

    • Choose your own operation mode – manual or semi-automatic – using the external selection screw

    • Easy strap threading – both straps are inserted together

    • Sealing time and strap tension are easy to adjust, resulting in the best possible seal efficiency and appropriately tensioned straps, resulting in perfectly secured packages

    • In addition, strap tension can be blocked for a consistent seal result

    • A signalisation pin shows you the end of each strapping cycle, to warrant an optimal seal cooling time

    • Pneumatically powered, very reliable and maintenance-friendly

    • The compressed air, can be connected to the tool either on top of the main housing or at the rear end

    • For packages with a rough and hard surface, a bottom-base wearing plate is available as accessory

    • In cases where soft packages are to be strapped, a plastic bottom-base protection plate is available

    • This tool is ideal for a wide variety of vertical and horizontal strapping positions, suitable for almost all applications in various industries

    Characteristics



    Strapping Qualities Polyester (PET) plain and embossed
    Strapping Dimensions width 19 – 32.0 mm / thickness 0.60 – 1.53 mm
    Weight incl. 4.0 Ah battery 8.9 kg / 19.6 lbs
    Tool size with 4.0 Ah battery L372 x W176 x H146 mm / 14.7" x 6.9" x 5.7"
    Type of seal Friction weld sealing
    Average seal strength approx. 75% (dependent on the strap quality)
    Tension force 2000 – 3500 N, 450 – 785 lbs / 4000 - 7000 N, 900 - 1570 lbs (adjustable)
    Tension speed approx. 120 mm/s or 60 mm/s
    Max. air pressure 6.0 bar / 87 psi
    Suspension bracket supplied with the tool







    Data sheet



    p359ds
