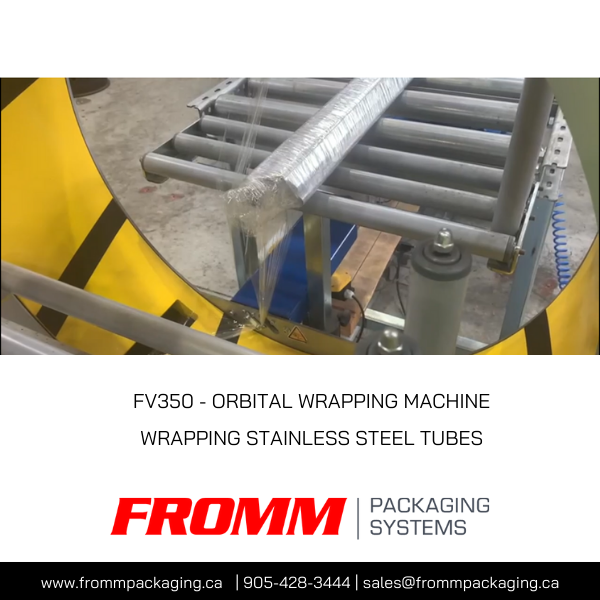

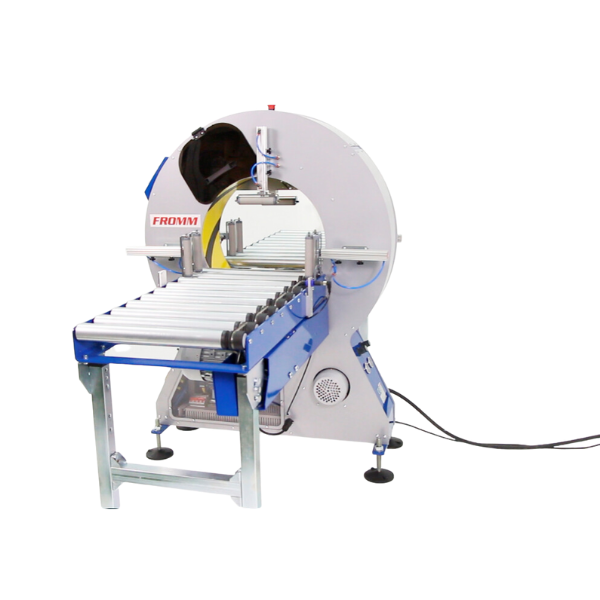

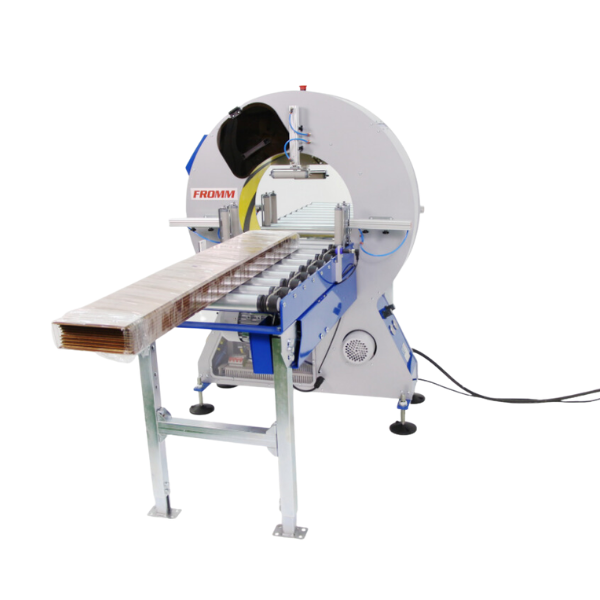

Orbital Stretch Wrap Machine

    FV350

    The Power of Orbital Wrapping:

    A Game-Changer for Your Packaging Line

    In the world of industrial packaging, efficiency, speed, and product protection are critical factors.  Orbital wrapper—a breakthrough technology designed to wrap products securely using a rotating ring mechanism. Unlike traditional wrapping machines that rotate the product itself, an orbital or ring wrapper moves film around stationary or moving items, providing even, consistent, and high-strength wrapping.

    Download Brochure

    Why Orbital wrapping is a game changer?

    Imagine wrapping long, heavy, or irregularly shaped products like timber, metal pipes, or furniture using manual labor. The process is slow, inconsistent, and often results in wasted materials. Orbital wrappers solve this problem by:

    • Ensuring secure wrapping without the need for manual adjustments.
    • Reducing film waste through precise application.
    • Speeding up packaging lines to handle higher volumes.

      The FV350 Series takes orbital wrapping to the next level, offering unparalleled speed, precision, and automation to meet the demands of modern production lines.

    • Ideal for wrapping long items: panels, bar bundles, beams, profiles, tubes, and cables.
    • Engineered for simplicity, enhancing both safety and efficiency.
    • Enhances wrapping processes and work conditions, adding value.
    • Dual film dispensers enable wrapping speeds up to twice as fast as single-dispenser machines.
    • Achieve a perfectly wrapped package with the right stretch and speed settings.
    • Automatic film attachment and cutting ensure consistent wrapping quality.
    • Choose between Semi-automatic and Automatic models for versatility.
    • Manual operation option available for hands-on control.
    • Foot pedal included for efficient, hands-free operation.
    • The FV series boosts productivity for a variety of product types and industries.
    Characteristics
    Ring diameter 50-250 cm
    Maximum speed 50-350 rpm
    Equipment Double film roll system / Automatic double cutting system / Color touchscreen / 6 packaging programs / Ring speed adjustable / Adjustable tape feed speed / Foil tension adjustable / Automatic start photocell
    Options Infeed and outfeed presses / Roller conveyors - vertical rollers / Top presses - vertical rolls automatically / Product bridge / Remote assistance via Ethernet
    Film Width: 100 mm / Thickness: up to 30 mm

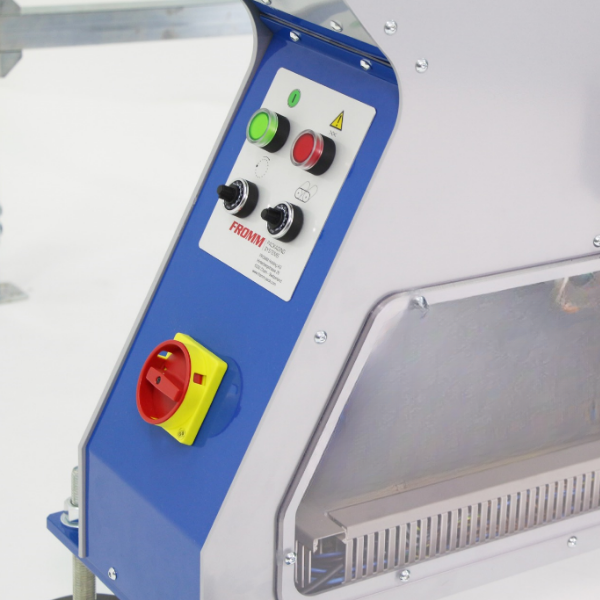

    • Touch screen operating panel
    • Ring diameters 50, 90, 125, 160, 200 or 250 cm
    • Processes stretch film rolls of 100, 170 or 250 mm (related to ring Ø)
    • Preferred film thickness 17, 23 or 30 μ
    • 2 film dispensers, with mechanical adjustable core brake
    • Stepless ring speed control – 5 to 350 rpm
    • Automatic package guiding control
    • Power supply 230V, 50/60Hz 0.4 – 1.66 kWh
    • Automatic film clamping and cutting
    • Various connected conveyor systems, line speed up to 30m/min

    • Perfect for logistics involving elongated goods such as wooden planks, profiles, and tubes.

    • Appropriate for industries handling corrugated board, counter battens, and small panels.

    • Well-suited for securing bundles of cables, wires, bars, and skirting boards.

    • Adaptable for use with ferrous, non-ferrous, or plastic materials.

    • Ideal for shipping departments wrapping fewer than 50 items per day.

    • Enhances packaging efficiency for a variety of long and slender product types.

    Do you need help to choose an orbital wrapping machine?

    Fromm specializes in a broad range of packaging products, including straps, strappers, and wrappers, ensuring that products reach their destinations in perfect condition. Fromm commitment enables timely delivery of high-quality products in the required quantities.

    FROMM  technical service is committed to long-term customer satisfaction, ensuring that products are well-maintained from installation​.

    Benefits of Orbital Wrapper

    • Increased Productivity
    • Cost Effective Wrapping Solutions
    • Improved Warehouse Safety
    • Professional & Consistent wrapping method
    • Improved Load Integrity



    FROMM Equipment Sales Team is delighted to  help you choose the right wrapping machine that suits your requirement.
