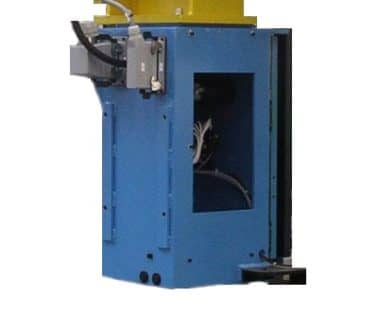

MH150

Advantages :

•  Heavy strong construction
•  High reliability 98%
•  The perfect double notch joint of the tool A482 (A483) guarantees 75% of the tensile strength of the steel strap (similar to 80% reached with 3 punches but a lot higher then 55% with 2 punches necessary for small packs/coils)
•  All current steel straps can be used with elongation from 600-1100N/mm2/ 87000-160000psi or galvanised
•  Packs can be dirty or with grease (no problems like with welding joints)
•  Using seals available in the market (competitors ask for their own seal)
•  The strap is tensioned through a profiled tension wheel, driven by motor-gear frequency controlled,adjustment by pneumatic clutch with manometer
•  No tension released (not necessary an opposite joint or the Microlock joint)
•  Min. parcel width is 80mm (90mm for 32mm) with hard package, the min coil diam. is approx. 400mm.
•  Small hexagonal tubes with 85mm side
•  Strapping line asymmetric for slit coils: radial strap through the eye for coils with ext. diameter 700-800mm
•  Circumferential strap for coils with ext. diameter aprox.400mm
•  Strap feed and retract speed is frequency controlled and therefore adjustable
•  Low wearing material; wearing parts in contact with the seal are made for A482 (A483) so available in stock
•  Mechanical switch/sensor to detect the parcel
•  Std Vertical installation including an head stroke to strap packs with similar packs (in a range of 50mm)
•  Option lateral installation to strap packs with Hmin=350mm with strap line at 300mm
•  Option horizontal installation to strap packs with Hmin=200mm with strap line at 150mm
