MH611 FROMM Strapping heads

The MH611, Electric Sealless Plastic Strapping Head is suitable for round packages
 High strap tension. Adjustable up to 7.000 N (1,570 lbs).

• Strap Qualities :Polyester (PET)

• Strap dimensions:19.0 - 32.0 x 0.60 - 1.53 mm

• Weight :124 kg

REQUEST A QUOTE

MH611
High tension, 19 – 32 mm, friction welding, round packages, aluminium and steel coil strapping

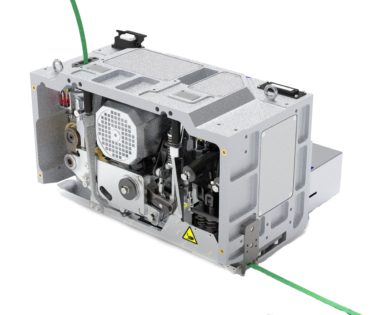

The MH611 strapping head has been designed for automatic, heavy duty industrial PET strapping applications. Perfect fit for round packages, in particular (HD) Coil strapping in the steel, aluminium and construction industry. Can be used as Horizontal and vertical stand-alone strapping machines or installation in integrated packaging lines.

Features :

Suitable for round packages
High strap tension. Adjustable up to 7.000 N (1,570 lbs)
One piece aluminium cast housing
Compact and modular design
Well proven separate feeding, tensioning and friction weld sealing systems
Handles 19, 25 or 32 mm strap
Strap guide open feature
Use of state-of-the-art manufacturing, controlling and material technology
Three side suspension attachment points and quick connectors, for easy integration
Long life and maintenance friendly, resulting in high availability
Mechanical pack detecting sensor (option)
Thinner or rubber coated base protection plate (option)
Cycle counter inside the head (option)
Dust cleaning system (option)
Head suspension with power floating system/ tension compensation (option)
Environment temperature monitoring for consistent seal efficiency(option)

Characteristics

Strapping Qualities	Polyester (PET)
Strapping Dimensions	19.0 - 32.0 x 0.60 - 1.53 mm
Strap tension	2000 - 7000 N
Sealing method	friction welding
Average seal strength	up to 80%
Tension speed	105 mm/s
Power consumption	0.55 kWh
Dimension	L 617 x W 547 x H 455 mm
Weight	124 kg

Everything in the interest of the customer –FROMM heads offer:

Applications :

• extended product line with 9 different heads
• for steel strap with seals or sealless with MicroLock™** option and sealless friction welding for plastic straps
• available for Semi- and Automatic operation
• easy to integrate in new and existing systems
• compact and easy accessible modular design

Technology and Operation:

• high and consistent seal efficiency*
• including the most modern production, control and material technologies

Service and Quality:

• durable and virtually maintenance-free
• designed and manufactured under the strict FROMM quality standards

MH611

For round packages, aluminium and steel coil strapping
