How much film can the FS1000 save compared to hand wrapping?

Most operations can reduce film use by 50 to 60 percent with the FS1000, thanks to its 250 percent pre-stretch ratio. Actual savings depend on pallet volume, film cost, and current wrapping method.

What kind of film does the FS1000 use?

The FS1000 uses standard 20" machine stretch film. A 30" film carriage is also available if broader coverage is needed for larger or more irregular loads.

What optional upgrades are available for the FS1000?

Options include a loading ramp, height extension, frame extension, auto film cut-and-wipe, a 30" film carriage, and a 70" turntable. These upgrades help match the machine to specific load sizes and handling needs.

FROMM STRETCH WRAPPING

FS1000

Q: What is the maximum load capacity of the FS1000?

The FS1000 supports loads up to 5,000 lbs and a maximum load size of 56" x 56". Its 59" diameter turntable suits standard industrial pallets, with a 70" turntable option available for larger footprints.

Q: Can the FS1000 be pit-mounted flush with the floor?

Yes. The FS1000 can be installed as a standard floor unit with a ramp or pit-mounted flush with the floor for easier pallet jack and forklift access. That makes it flexible for different plant layouts.

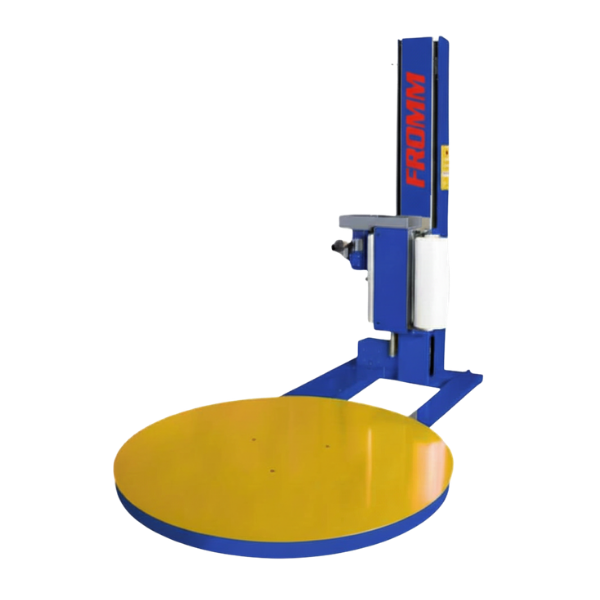

Low-Profile Semi-Automatic
Turntable Stretch Wrapper

Engineered for reliability. The FS1000 delivers consistent, secure pallet wrapping with X-TRETCH pre-stretch technology, PRO-GLIDE turntable support, and the intuitive DIGI-TECH control unit.

View Specs

5,000 lbs

Load Capacity

16 RPM

Max Speed

250%

Pre-Stretch

59"

Turntable Ø

86"

Load Height

Floor Height

Core Technologies

Built to Perform.

X-TRETCH Pre-Stretch

Superior film economy with 250% standard pre-stretch ratio. Electronically adjustable film tension delivers consistent wrapping while reducing film consumption.

PRO-GLIDE Turntable

Maintenance-free turntable support system with heavy-duty chain drive and robust casters. Superior weight capacity up to 5,000 lbs.

DIGI-TECH Control

Advanced semi-automatic control unit with separate top and bottom wrap counts (1-10), soft start/stop, and dual adjustable film carriage speed.

Standard Features

Everything You Need.

Structural steel frame

Forklift portable

Flush-with-floor pit mountable

Easy access to components

½ HP turntable drive motor

Heavy duty chain drive

Photo-eye height detection

Positive turntable home alignment

Reinforce wrap function

Gentle wrap for light pallets

Auto corner compensation

Lifetime warranty on stretch rollers

Technical Data

Specifications.

The FS1000 is designed for demanding industrial environments. Every component is engineered for maximum uptime and minimal maintenance.

Turntable SpeedAdjustable up to 16 RPM

Control TypeFull-Feature Semi-Automatic

Load Capacity5,000 lbs max.

Load Height86"

Turntable Size59" diameter

Turntable Height3" from floor

Pre-Stretch Ratio250% standard

Max Load Size56" × 56"

Tower Height85"

Clearance Required97"

Film Size20" machine film

Drive Motor½ HP turntable drive

Product Documentation

Download the FS1000 Brochure

Full technical specifications, options and dimensions — PDF format.

Customization

Available Options.

Loading Ramp

Standard ramp for pallet jack access. Extended heavy-duty ramp available for electrical walkies.

Height Extension

Wrap height extension for taller pallets beyond the standard 86" load height.

Frame Extension

Frame extension kit for longer and wider pallets exceeding 56" × 56".

Auto Film Cut

Automatic film cut-and-wipe for faster cycle times and hands-free operation.

30" Film Carriage

Wider carriage for 30" film rolls - increased coverage per revolution.

70" Turntable

Oversized 70" diameter turntable for extra-large pallet footprints.

ROI Calculator

Calculate Your Savings.

The FS1000's 250% pre-stretch ratio dramatically reduces film consumption compared to hand wrapping. Estimate your potential savings below.

Pallets per day 50

Film cost per roll ($) $45

Current film revolutions per pallet 3.5

Annual Film Savings

estimated per year

Annual Labor Savings

at $22/hr average

Total Annual Savings

Film + labor combined

Frequently Asked Questions

What is the maximum load capacity of the FS1000?

The FS1000 supports loads up to 5,000 lbs with a maximum load size of 56" × 56". The 59" diameter turntable accommodates standard and oversized pallets, with an optional 70" turntable available for extra-large footprints.

How fast does the FS1000 wrap a pallet?

With an adjustable turntable speed of up to 16 RPM and the DIGI-TECH control unit's programmable wrap patterns, a typical pallet can be wrapped in under 2 minutes. Exact cycle time depends on load height and the number of top and bottom wrap revolutions selected.

Can the FS1000 be pit-mounted flush with the floor?

Yes. The FS1000 is designed for both standard floor placement (3" turntable height with loading ramp) and flush-with-floor pit mounting. Pit mounting eliminates the need for a loading ramp and allows direct pallet jack or forklift access.

What size and type of film does the FS1000 use?

The FS1000 uses standard 20" machine stretch film. An optional 30" film carriage is available for wider coverage. The machine is compatible with a range of film types to suit your operation's needs.

How much film will I save compared to hand wrapping?

Most operations see a 50-60% reduction in film consumption when switching from hand wrapping to the FS1000, thanks to the 250% pre-stretch ratio. Use our ROI Calculator above to estimate your specific savings based on your daily volume and current film usage.

What maintenance does the FS1000 turntable wrapper require?

The FS1000 is engineered for minimal maintenance. The PRO-GLIDE turntable support system is maintenance-free, and the stretch rollers carry a lifetime warranty. Routine maintenance is limited to periodic inspection of the chain drive and film carriage components. Easy access to all components simplifies any service that is needed.

Can the FS1000 wrap light or unstable pallets?

Yes. The DIGI-TECH control unit includes a Gentle Wrap feature specifically designed for light or unstable loads. Combined with turntable soft start/stop and electronically adjustable film tension, the FS1000 can be tuned to safely wrap even delicate pallets.

Is the FS1000 portable between locations?

Yes. The FS1000 features a structural steel frame with forklift pockets, making it easy to relocate between workstations or facilities as your operation requires.

What optional upgrades are available?

Available options include: extended heavy-duty loading ramp for electric walkies, wrap height extension for taller pallets, frame extension for wider loads, automatic film cut-and-wipe, 30" film carriage, and a 70" diameter turntable. Contact us for a configuration tailored to your needs.

Do you offer on-site demonstrations?

Yes. Our team can arrange an on-site demonstration at your facility so you can see the FS1000 in action with your actual pallets and products. Contact us at +1 (905) 428-3444 or submit a quote request to schedule a demo.

How do I get a quote or place an order?

Click "Request a Quote" anywhere on this page or call us directly at +1 (905) 428-3444 (Mon-Fri 9am-4pm). Our team will work with you to determine the right configuration and provide a detailed quote, typically within 24 hours.
