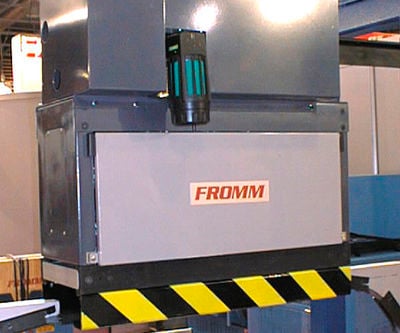

MH200 FROMM Strapping heads

MH200, High tension steel strapping head with three notch sealless joint are for strapping of small packages.

• Strap Qualities : Uniflex up to 850 N/mm2 |Ultraflex up to 1100 N/mm2

• Strap dimensions: 19.0 - 32.0 x 0.63 - 1.00 mm
• Weight : 160 kg

REQUEST A QUOTE

Features :

High strap tension up to 18000N (4050lbs) adjustable
High seal efficiency up to 80%
Linear strap tensioning system
Both strap ends tensioned simultaneously
Sealless strap joint with MicroLock secured seal
Modular feeding and sealing system
Low wear on punching tools
Pneumatically powered
Easy integration
Fast exchange of cutting and punching tools
Strapping of small package sizes

Characteristics

Strapping Qualities	Uniflex up to 850 N / Ultraflex up to 1100 N
Strapping Dimensions	19.0 - 32.0 x 0.63 -1.00 mm
Strapping head type	Pneumatic
Strap tension	max. 18000 N (adjustable)
Sealing method	Sealless joint
Seal strength	up to 55%
Feed/retract speed	2 m/s
Dimension	L 777 x W 270 x H 810 mm
Weight	160 kg

Options :

Dispenser for jumbo-coils
Sword
Machine with travel facility
Integrated bunker feed system
Edge protection system
Vertical press systems up to 20 KN press force
Conveying systems

Everything in the interest of the customer –FROMM heads offer:

Applications :

• extended product line with 9 different heads
• for steel strap with seals or sealless with MicroLock™** option and sealless friction welding for plastic straps
• available for Semi- and Automatic operation
• easy to integrate in new and existing systems
• compact and easy accessible modular design

Technology and Operation:

• high and consistent seal efficiency*
• including the most modern production, control and material technologies

Service and Quality:

• durable and virtually maintenance-free
• designed and manufactured under the strict FROMM quality standards

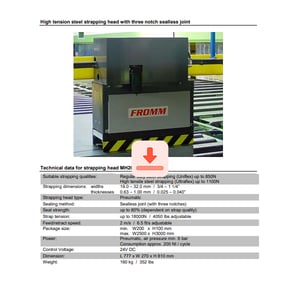

MH200

Strap Head for Steel Strapping
