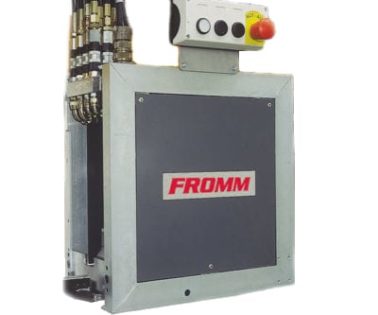

M100

    Strap Head for Steel Strapping

    M100

    FROMM Strapping heads

    The M1000 is a fast strapping solution for timber, metal, and building products. It features continuous and shift operations, and is highly efficient when used for general baling and strapping unitized products.

    • Strap Qualities : Uniflex up to 850 N/mm2 Ultraflex up to 1100 N/mm2
    • Strapping dimensions : 9.5 - 20.0 x 0.50 - 0.80 mm
    • Weight : 67 kg







    REQUEST A QUOTE

    Strapping Heads for Automatic and Semi-automatic Strapping Solutions

    Features :
    • High strap tension up to 9000N (2025lbs) adjustable
    • High seal efficiency up to 80%
    • Tensioning system with integrated floating
    • Sealless strap joint
    • Available with MicroLock™ system
    • Modular feeding and sealing system
    • Low wear on punching tools
    • Hydraulically powered and controlled
    • Easy integration
    • Fast exchange of cutting and punching tools
    • Most reliable strapping head available in the world

    Characteristics

    Strapping Qualities Uniflex up to 850 N / Ultraflex up to 1100 N
    Strapping Dimensions 9.5 - 20.0 x 0.50 - 0.80 mm
    Strapping head type Hydraulic
    Strap tension up to 9000 N / 2025 lbs adjustable
    Sealing method Sealless joint
    Seal strength up to 80%
    Feed/retract speed 2 m/s
    Package size min W300 x H20 mm / max. W2500 x H3000 mm
    Power Hydraulic, pressure up to 185 bar
    Control Voltage 24V DC
    Dimension L 440 x W 220 x H 450 mm
    Weight 67 kg








    Options :
    • Dispenser for jumbo-coils
    • Sword
    • Machine with travel facility
    • Integrated bunker feed system
    • Edge protection system
    • Vertical press systems up to 20 KN press force
    • Conveying systems

    Straping-head-tndatasheet-m100-tn



    Everything in the interest of the customer –FROMM heads offer:

    Applications :

    • extended product line with 9 different heads
    • for steel strap with seals or sealless with MicroLock™** option and sealless friction welding for plastic straps
    • available for Semi- and Automatic operation
    • easy to integrate in new and existing systems
    • compact and easy accessible modular design



    Technology and Operation:

    • high and consistent seal efficiency*
    • including the most modern production, control and material technologies

    Service and Quality:

    • durable and virtually maintenance-free
    • designed and manufactured under the strict FROMM quality standards
